Hydraulický zvedák HWK (pro zvedání automobilů)
Hydraulický zvedák HWK (pro zvedání automobilů)
Technical data model HWH KS PROLINE with piston and spindle
| Model | EAN-No. 4050939*** | Capacity t | Hmotnost kg |
|---|---|---|---|
| HWH KS 2,0 | ***018436 | 2 | 2.9 |
| HWH KS 3,5 | ***018535 | 3.5 | 2.9 |
| HWH KS 5,0 | ***017286 | 5 | 3.9 |
| HWH KS 8,0 | ***017293 | 8 | 5.7 |
| HWH KS 10,0 | ***017316 | 10 | 5.7 |
| HWH KS 12,0 | ***017323 | 12 | 7.1 |
| HWH KS 15,0 | ***017354 | 15 | 8.3 |
| HWH KS 20,0 | ***017521 | 20 | 10.7 |
| HWH KS 25,0 | ***017743 | 25 | 13.1 |
| HWH KS 30,0 | ***017774 | 30 | 14.5 |

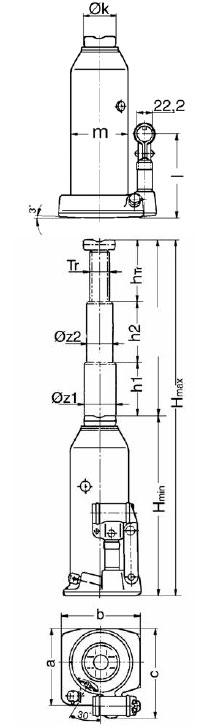

Dimensions model HWH KS PROLINE with piston and spindle
| Model | HWH KS 2,0 | HWH KS 3,5 | HWH KS 5,0 | HWH KS 8,0 | HWH KS 10,0 | HWH KS 12,0 | HWH KS 15,0 | HWH KS 20,0 | HWH KS 25,0 | HWH KS 30,0 |
|---|---|---|---|---|---|---|---|---|---|---|
| H min., mm | 170 | 170 | 212 | 220 | 220 | 230 | 230 | 240 | 240 | 240 |
| H max., mm | 377 | 377 | 462 | 480 | 480 | 497 | 495 | 505 | 515 | 482 |
| h1, mm | 115 | 115 | 150 | 150 | 150 | 157 | 155 | 155 | 157 | 142 |
| hTr, mm | 92 | 92 | 100 | 110 | 110 | 110 | 110 | 110 | 118 | 100 |
| Ø k, mm | 28 | 28 | 40 | 48 | 48 | 48 | 60 | 60 | 65 | 65 |
| I, mm | 113 | 113 | 113 | 116 | 116 | 116 | 116 | 116 | 120 | 116 |
| m, mm | 58 | 58 | 65 | 80 | 80 | 90 | 95 | 116 | 133 | 133 |
| Tr, mm | 20 x 4 | 20 x 4 | 24 x 5 | 32 x 5 | 32 x 5 | 35 x 6 | 40 x 6 | 45 x 6 | 48 x 6.35 | 48 x 6.35 |
| Ø z1, mm | 24.9 | 24.9 | 29.9 | 39.5 | 39.5 | 43.5 | 48.5 | 54.5 | 59.5 | 61.5 |
Capacity 2 - 30 t
For lifting vehicles on one side (the lifted load must be secured mechanically with supporting stands, for example).
- Versions with hydraulic piston and mechanical spindle drive resp. with 2 hydraulic pistons
- With carrying bracket from load capacity 20 t
- Extremely low design with model HWH 2K/D (incl. 1 pressure section for lift extension)
- With integrated pressure control valve for a longer service life of the jack
- Integrated seat valve for controlled lowering of the load
